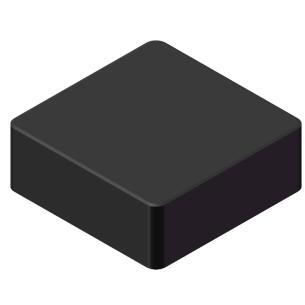

方形整体立方氮化硼刀片
发布单位: 立方氮化硼刀具,CBN刀片,陶瓷刀片,HLCBN刀具 . 所属类别: 整体式CBN刀具 . 点击查阅: 20995 次.
方形整体立方氮化硼刀片简介:
抗冲击性和耐磨性的完美平衡。可高速高效精加工；亦可用于普通机床，进行低/中速状态下的粗加工和半精加工；广泛应用于灰铸铁，耐磨合金铸铁，夹砂、白口铸铁和各种铸钢，淬硬钢材料的加工。 HLCBN整体刀片可承受大切深、大走刀，能适应断续切削。注意：整体刀片无中心孔，铣削加工时常配合楔块式锁紧的面铣刀刀盘，车削或镗削时需配用上压式刀杆。
国家重点产学研科技攻关项目成果，实用新型专利产品。与目前普遍使用金属结合剂的整体CBN刀具相比，其优势在于：避免了因为加入金属结合剂，造成的CBN刀具寿命降低。
|
  |
|
型号 |

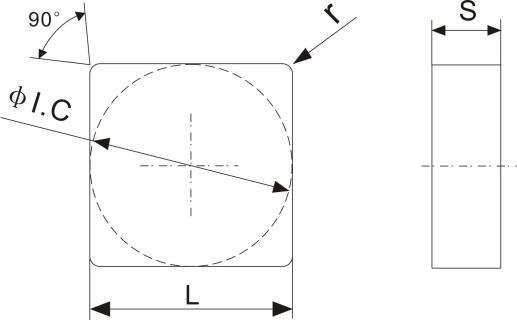

尺寸参数(mm) |
推荐刃口 |
牌号 |
配套刀杆 |
|
L |
φI.C |
S |
r |
BN-K1 |
BN-S10 |
BN-S20 |
BNK30 |
BN-S300 |
|
SNMN090304 |
9 |
9.525 |
3.18 |
0.4 |
S01020
S01025
S02020
S02030
S05020
S10020 |
|
◎ |
● |
● |
● |
CSDNN
CSSNR/L
CSKNR/L
CSRNR/L
CSXNR/L
S25T-CSKNR/L |
|
SNMN090308 |
9 |
9.525 |
3.18 |
0.8 |
|
◎ |
● |
● |
● |
|
SNMN090312 |
9 |
9.525 |
3.18 |
1.2 |
|
◎ |
● |
● |
● |
|
SNMN090404 |
9 |
9.525 |
4.76 |
0.4 |
|
◎ |
● |
● |
● |
|
SNMN090408 |
9 |
9.525 |
4.76 |
0.8 |
|
◎ |
● |
● |
● |
|
SNMN090412 |
9 |
9.525 |
4.76 |
1.2 |
|
◎ |
● |
● |
● |
|
SNMN120404 |
12 |
12.7 |
4.76 |
0.4 |
● |
● |
● |
● |
● |
|
SNMN120408 |
12 |
12.7 |
4.76 |
0.8 |
● |
● |
● |
● |
● |
|
SNMN120412 |
12 |
12.7 |
4.76 |
1.2 |
● |
● |
● |
● |
● |
|
SNMN120712 |
12 |
12.7 |
7.94 |
1.2 |
● |
● |
● |
● |
● |
|
SNMN120716 |
12 |
12.7 |
7.94 |
1.6 |
● |
● |
● |
● |
● |
|
SNMN150716 |
15 |
15.875 |
7.94 |
1.6 |
● |
● |
● |
|
|
|
SNMN201020 |
20 |
20 |
10 |
2.0 |
● |
● |
|
|
|
