PCD铣刀
发布单位: 立方氮化硼刀具,CBN刀片,陶瓷刀片,HLCBN刀具 . 所属类别: 金刚石刀具 . 点击查阅: 7145 次.

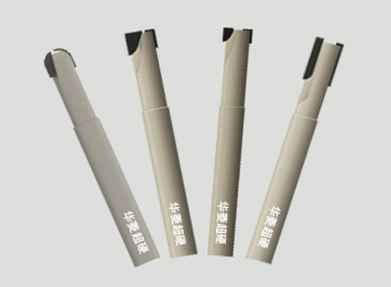

PCD铣刀简介:
华菱PCD铣刀具备以下优势：（1）具有超高硬度和超耐磨性；（2）性能稳定，刀具寿命超长；（3）加工效率高，成本低；（4）可获得较高表面光洁度；（5）导电性高 ，韧性好。广泛用于 3C，汽车，航空航天等领域，常见加工材质为：铝、镁、钛、硅等有色金属；纤维材料，绝缘材料，塑料，复合材料等。

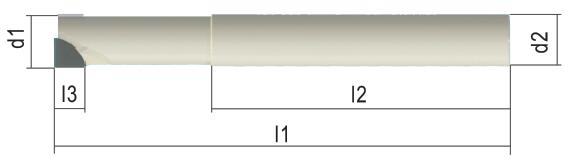

1、PCD单刃螺旋立铣刀（钻孔铣削深度1*d1）
|
|
|
订货编码 |
d1 |
l3 |
d2 |
l2 |
l1 |
Z 齿数 |
|
SM030560-1S |
3 |
5 |
4 |
40 |
60 |
1 |
|
SM040660-1S |
4 |
6 |
4 |
40 |
60 |
1 |
|
SM050760-1S |
5 |
7 |
6 |
40 |
60 |
1 |
|
SM060860-1S |
6 |
8 |
6 |
40 |
60 |
1 |
|
SM081072-1S |
8 |
10 |
8 |
40 |
72 |
1 |
|
SM101272-1S |
10 |
12 |
10 |
40 |
72 |
1 |

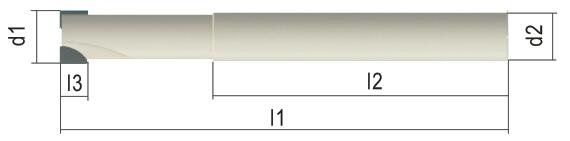

2、PCD双刃螺旋立铣刀（钻孔铣削深度0.5*d1）
|
|
|
订货编码 |
d1 |
l3 |
d2 |
l2 |
l1 |
Z 齿数 |
|
DM060560-2S |
6 |
5 |
6 |
40 |
60 |
2 |
|
DM080572-2S |
8 |
5 |
8 |
40 |
72 |
2 |
|
DM100672-2S |
10 |
6 |
10 |
40 |
72 |
2 |
|
DM120897-2S |
12 |
8 |
12 |
50 |
97 |
2 |
|
DM140997-2S |
14 |
9 |
14 |
50 |
97 |
2 |
|
DM161097-2S |
16 |
10 |
16 |
50 |
97 |
2 |
|
DM181197-2S |
18 |
11 |
18 |
50 |
97 |
2 |
|
DM201297-2S |
20 |
12 |
20 |
50 |
97 |
2 |
3、PCD双刃螺旋立铣刀（钻孔铣削深度0.5*d1）
|
|
|
订货编码 |
d1 |
l3 |
d2 |
l2 |
l1 |
Z 齿数 |
|
DM060460-2S |
6 |
4 |
6 |
40 |
60 |
2 |
|
DM080472-2S |
8 |
4 |
8 |
40 |
72 |
2 |
|
DM100572-2S |
10 |
5 |
10 |
40 |
72 |
2 |
|
DM120697-2S |
12 |
6 |
12 |
50 |
97 |
2 |
|
DM140797-2S |
14 |
7 |
14 |
50 |
97 |
2 |
|
DM160897-2S |
16 |
8 |
16 |
50 |
97 |
2 |
|
DM180997-2S |
18 |
9 |
18 |
50 |
97 |
2 |
|
DM201097-2S |
20 |
10 |
20 |
50 |
97 |
2 |

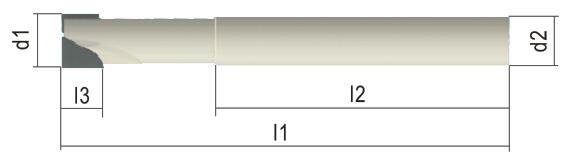

4、PCD双刃螺旋立铣刀（钻孔铣削深度1*d1）
|
|
|
订货编码 |
d1 |
l3 |
d2 |
l2 |
l1 |
Z 齿数 |
|
DM060860-2S |
6 |
8 |
6 |
40 |
60 |
2 |
|
DM081172-2S |
8 |
11 |
8 |
40 |
72 |
2 |
|
DM101372-2S |
10 |
13 |
10 |
40 |
72 |
2 |
|
DM121597-2S |
12 |
15 |
12 |
50 |
97 |
2 |
|
DM141697-2S |
14 |
16 |
14 |
50 |
97 |
2 |
|
DM161897-2S |
16 |
18 |
16 |
50 |
97 |
2 |
|
DM182097-2S |
18 |
20 |
18 |
50 |
97 |
2 |
|
DM202297-2S |
20 |
22 |
20 |
50 |
97 |
2 |

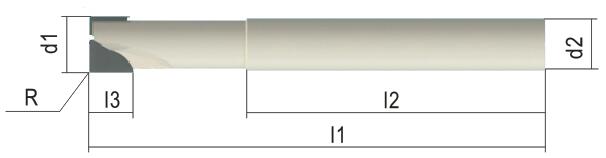

5、PCD双刃螺旋立铣刀（钻孔铣削深度1*d1，不同圆弧角）
|
 |
|
订货编码 |
R |
d1 |
l3 |
d2 |
l2 |
l1 |
Z 齿数 |
|
DMR005060660-2S |
0.5 |
6 |
6 |
6 |
50 |
60 |
2 |
|
DMR010060660-2S |
1.0 |
6 |
6 |
6 |
50 |
60 |
2 |
|
DMR010080872-2S |
1.0 |
8 |
8 |
8 |
50 |
72 |
2 |
|
DMR020080872-2S |
2.0 |
8 |
8 |
8 |
50 |
72 |
2 |
|
DMR010101072-2S |
1.0 |
10 |
10 |
10 |
50 |
72 |
2 |
|
DMR020101072-2S |
2.0 |
10 |
10 |
10 |
50 |
72 |
2 |
|
DMR010121297-2S |
1.0 |
12 |
12 |
12 |
50 |
97 |
2 |
|
DMR020121297-2S |
2.0 |
12 |
12 |
12 |
50 |
97 |
2 |
|
DMR030121297-2S |
3.0 |
12 |
12 |
12 |
50 |
97 |
2 |

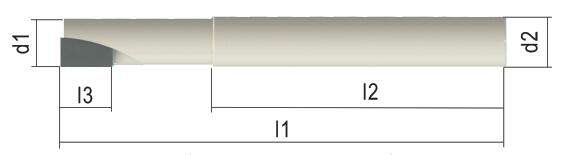

6、PCD双刃螺旋立铣刀（钻孔铣削深度2*d1）
|
|
|
订货编码 |
d1 |
l3 |
d2 |
l2 |
l1 |
Z 齿数 |
|
DM061360-2S |
6 |
13 |
6 |
40 |
60 |
2 |
|
DM081872-2S |
8 |
18 |
8 |
40 |
72 |
2 |
|
DM102297-2S |
10 |
22 |
10 |
40 |
97 |
2 |
|
DM122597-2S |
12 |
25 |
12 |
50 |
97 |
2 |
|
DM143097-2S |
14 |
30 |
14 |
50 |
97 |
2 |
|
DM163497-2S |
16 |
34 |
16 |
50 |
97 |
2 |
|
DM183897-2S |
18 |
38 |
18 |
50 |
97 |
2 |
|
DM204297-2S |
20 |
42 |
20 |
50 |
97 |
2 |

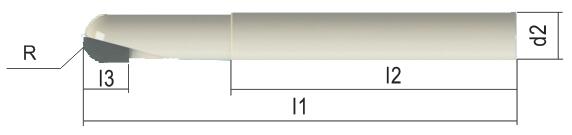

7、PCD单刃球头铣刀
|
|
|
订货编码 |
R |
l3 |
d2 |
l2 |
l1 |
Z 齿数 |
|
BMR015050660-1S |
1.5 |
5 |
6 |
40 |
60 |
1 |
|
BMR020060660-1S |
2.0 |
6 |
6 |
40 |
60 |
1 |
|
BMR025070660-1S |
2.5 |
7 |
6 |
40 |
60 |
1 |
|
BMR030080660-1S |
3.0 |
8 |
6 |
40 |
60 |
1 |
|
BMR040100872-1S |
4.0 |
10 |
8 |
40 |
72 |
1 |
|
BMR050121072-1S |
5.0 |
12 |
10 |
40 |
72 |
1 |

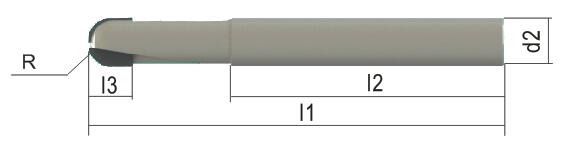

8、 PCD双刃球头铣刀
|
|
|
订货编码 |
R |
l3 |
d2 |
l2 |
l1 |
Z 齿数 |
|
BMR030080660-2S |
3 |
8 |
6 |
40 |
60 |
2 |
|
BMR040110872-2S |
4 |
11 |
8 |
40 |
72 |
2 |
|
BMR050131097-2S |
5 |
13 |
10 |
50 |
97 |
2 |
|
BMR060151297-2S |
6 |
15 |
12 |
50 |
97 |
2 |
|
BMR070161497-2S |
7 |
16 |
14 |
50 |
97 |
2 |
|
BMR080181697-2S |
8 |
18 |
16 |
50 |
97 |
2 |
|
BMR090201897-2S |
9 |
20 |
18 |
50 |
97 |
2 |
|
BMR100222097-2S |
10 |
22 |
20 |
50 |
97 |
2 |
注：可根据用户要求进行非标定制或提供PCD材料及焊接工艺。
